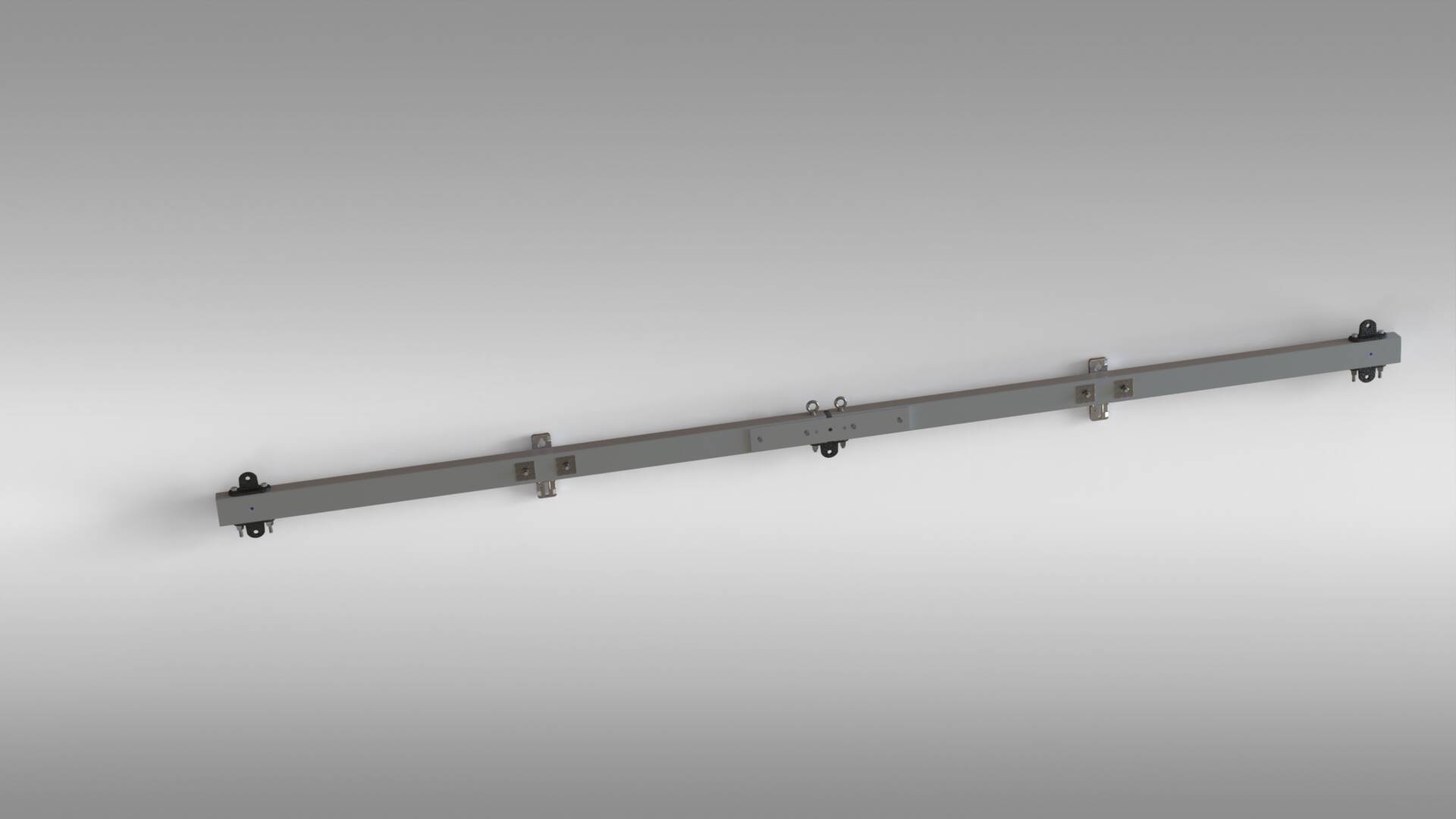

H-Frame Kits and Components
MacLean Power Systems is the only provider offering a complete, fire-retardant H-Frame Crossarm solution that simplifies both procurement and installation. The UVMAXX ™ H-Frame Crossarm and its components come in a single, customizable kit—eliminating the complexity of sourcing multiple parts.

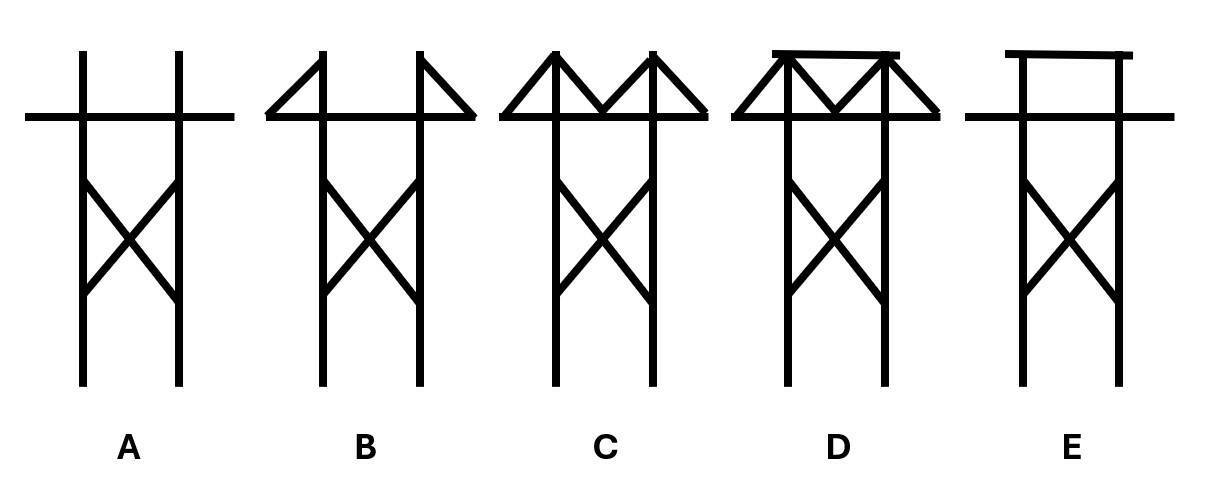

H-Frame Kits
| Catalog Number | Style | Pole Spacing, ft | Arms | Voltge Class |
|---|---|---|---|---|
| HFKIT013 | Custom | 10 | Single | 69kV |
| HFKIT008 | D | 12 | Double | 69kV |
| HFKIT004 | C | 10 | Double | 69kV |
| HFKIT023 | D | 14 | Single | 115kV |
| HFKIT019 | D | 15.5 | Double | 138kV |
| HFKIT009 | D | 15.5 | Double | 138kV |
| HFKIT017 | B | 21 | Single | 345kV |
| HFKIT018 | Custom | 30 | Single | 361kV |
| HFKIT016 | D | 30 | Single | 361kV |

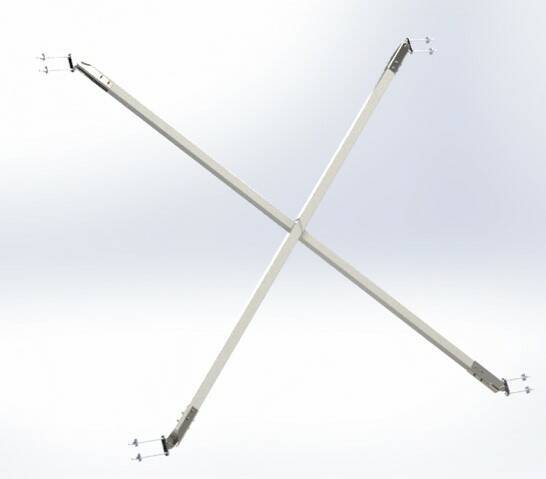

X-Brace Clamps
| Catalog Number | Weight, lbs | Center-Center | Hardware |
|---|---|---|---|
| XBCC58 | 4.4 | 8.5" | 5/8" |
X-Braces
| Catalog Number | Catalog w/ Mounting Hardware | Pole Spacing, ft | Approximate pole diameter |
|---|---|---|---|
| XB40K10 | XB40K10-HW | 10 | 12" |
| XB40K12 | XB40K12-HW | 12 | 12" |
| XB40K125 | XB40K125-HW | 12.5 | 12" |
| XB40K155 | XB40K155-HW | 15.5 | 12" |
| XB40K27 | XB40K27-HW | 27 | 12" |
| XB40K30 | XB40K30-HW | 30 | 12" |
